Aluminum Alloy Preform Guy Grips with Insulation Coating
Preformed Guy Grips" (or "Preformed Dead-End Grips"), The materials of dead-end clamp differ for the matched conductors, generally, high-tensile aluminum alloy for aluminum ally conductors; aluminum-clad steel for ACSR. Performed Dead-end clamps are used to fix conductors in the end or the middle of the overhead transmission lines. By wrapping the helical rods on a conductor, spring tension is created and the friction is
produced between the conductor and rods. This friction ensures a constant gripping. Minimum holding strength of dead-end set not less than 95% RTS of cable. Excellent anti-fatigue characteristic. The installation is convenient, no special tools needed.
Specification:
| Material | Aluminum alloy |
| Application | Insulated conductor, Telecom cable |
| Length | Customization |
| Diametr Range | Customization |
Features:
1.1 Once installed, do not reuse after this initial installation. The hardware components may be reused as long as they are in good condition. Do not modify any components.
1.2 Right-hand lay is standard. Left-hand lay is available.
1.3 Contact us in advance for the requirement of left-hand lay dead-end clamp.
1.4 The fittings can only be installed by experienced workers.

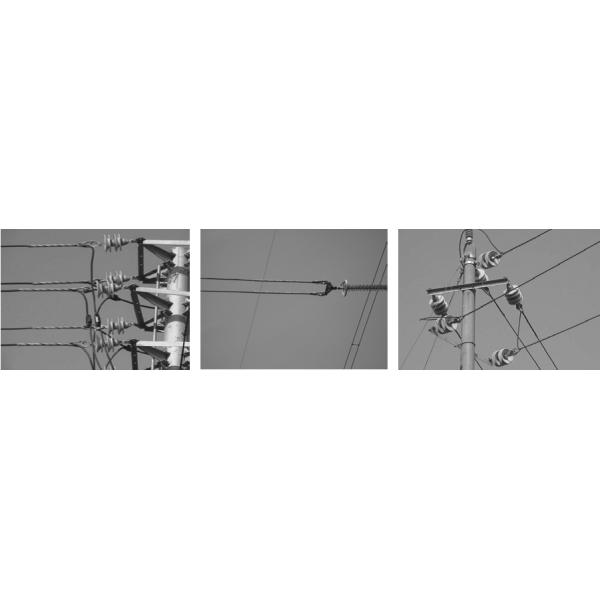

Installation:
Application:
1. Power Transmission & Distribution.
2. Telecommunications & Fiber Optics
3. Civil Engineering & Structural Support
4. Railway & Transportation
